Product Description
| Product Name | NOx Sensor (SNS Gen 2.8) |
|---|---|
| Part Number | A 010 153 23 28 / 0002 ULT042 |
| Manufacturer Number | 5WK97339A / SNS339A |
| Type Reference | A2C89603300-01 |
| Brand | for Mercedes-Benz |
| Voltage | 12V |
| Application | Heavy Duty Trucks / Commercial Vehicles |
Part Numbers & References
- Part Number: A 010 153 23 28
- Manufacturer Number: 5WK97339A
- Series / Type: SNS339A
- Type Reference: A2C89603300-01

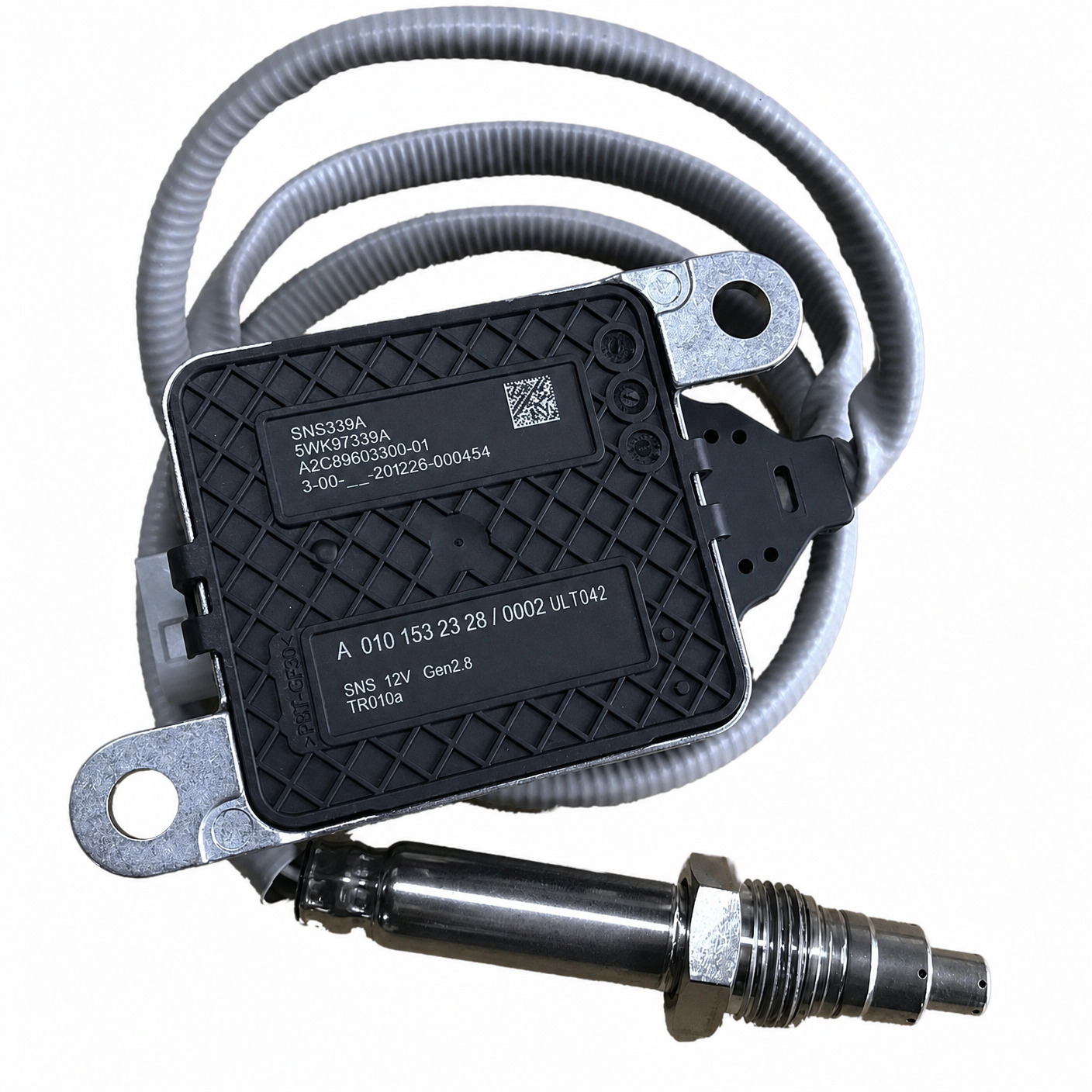

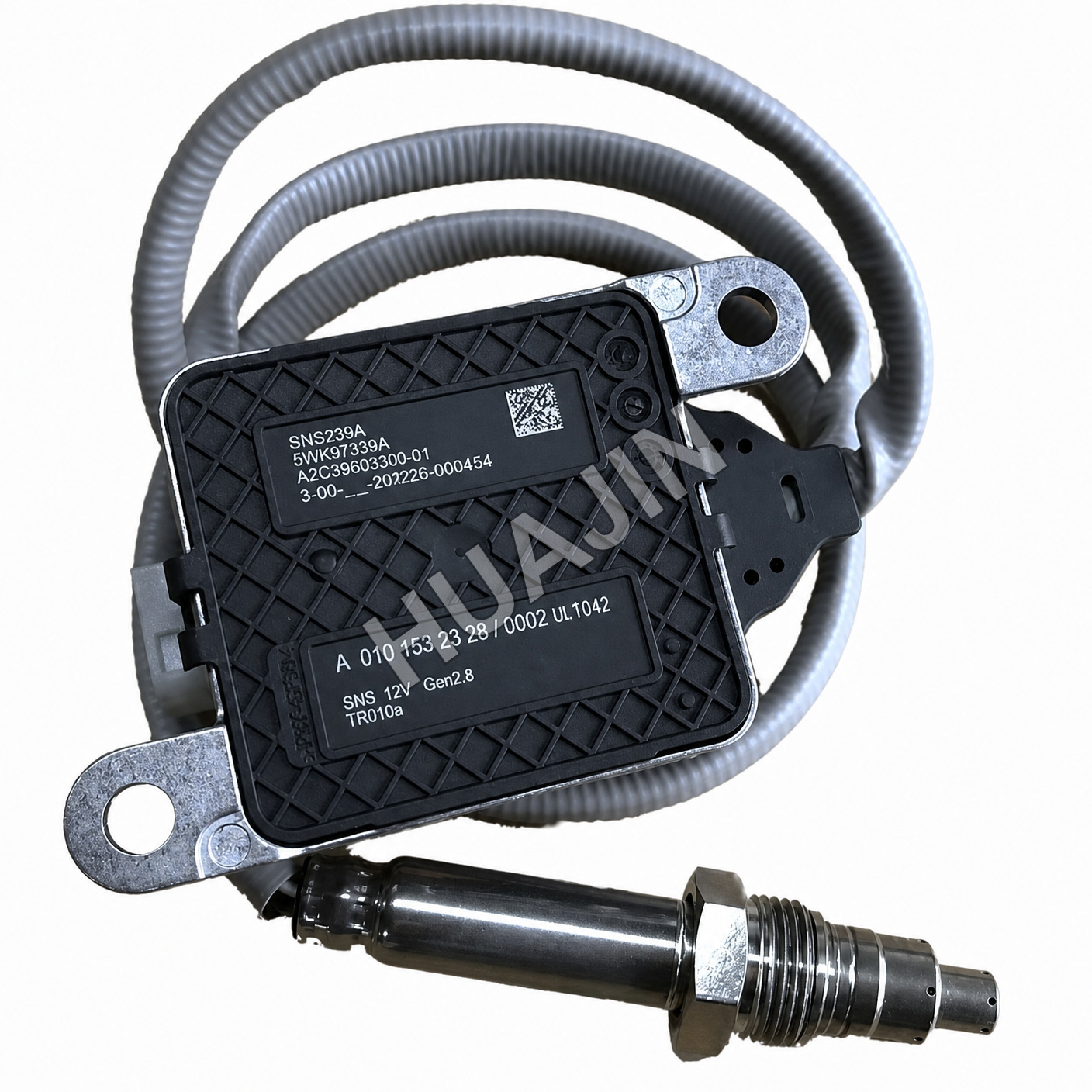

- Marking: 0002 ULT042 / TR010a
Specifications
- Voltage: 12V
- System: SCR exhaust aftertreatment
- Sensor Type: NOx (Nitrogen Oxide) sensor, SNS Gen 2.8
- Housing Material: PBT-GF30
- Mounting: metal bracket with two mounting eyelets
- Conduit: grey corrugated protective conduit
Features
- 12V NOx sensor for SCR exhaust aftertreatment
- Smart NOx Sensor (SNS) Gen 2.8 design
- Black lattice-pattern ECU housing with two mounting eyelets
- Grey corrugated conduit protecting the harness

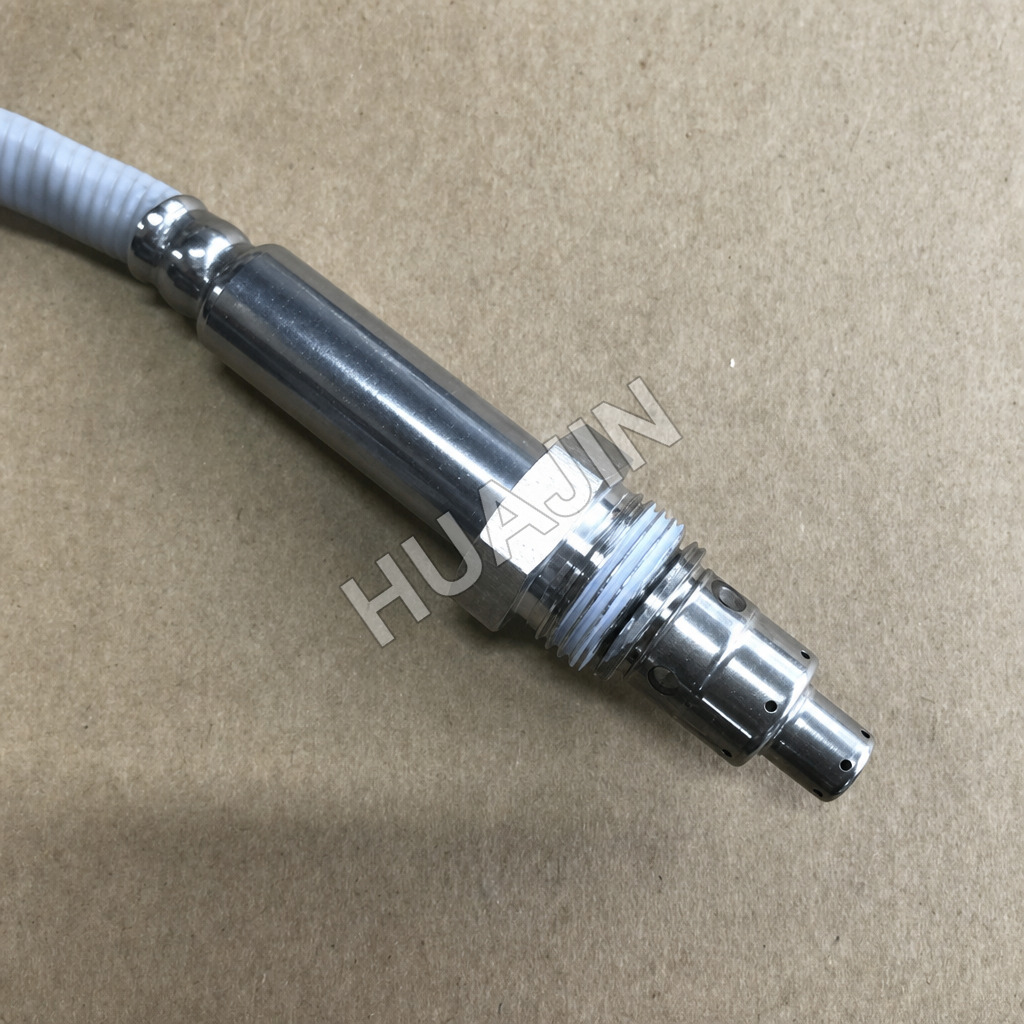

- Metal probe with hex nut and threaded mounting section

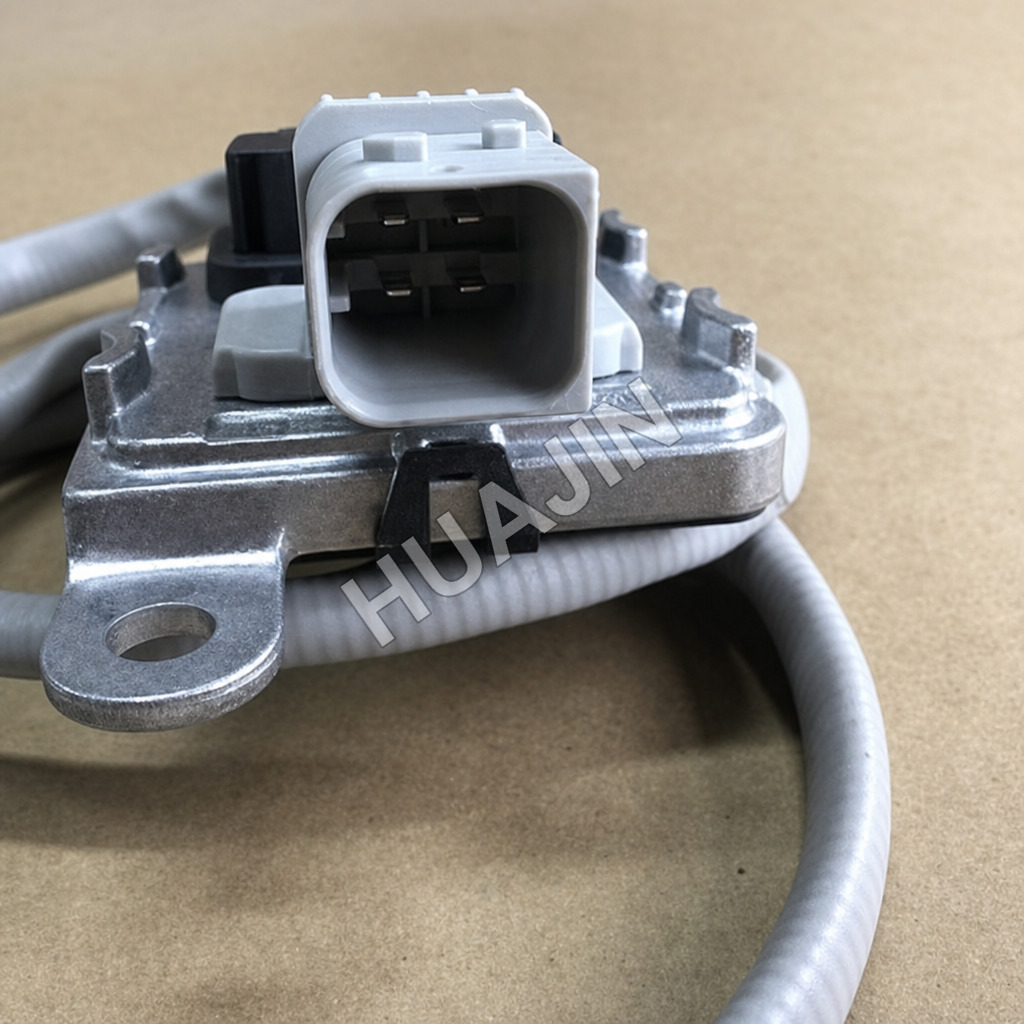

- Sealed multi-pin connector with wire guide slots
